Thunderbird V1

  • Sale
  • Regular price $599.99


chromo-frame-logo-1 chromo-frame-fork-bars-logo-1  logo-int-headset-1 logo-double-rim-1 mid-bb-logo-1 3pc-cranks-logo-1 pivotal-logo-1   Eastern Riblet Grips

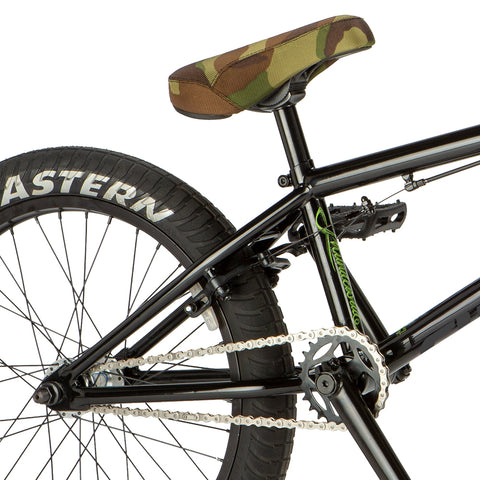

The Eastern Thunderbird V1 is a clean dirt jump bike built tough with a full chromo frame and our Facet pedals. Other features:  sealed bearing integrated headset, sealed front and rear hubs, a 3-piece chromoly cranks, Eastern grips, sprocket and a double-wall rear rim. Specs & Pricing Subject to Change

25.5 Lbs

    • Full Chromoly Frame
    • Chromoly Steerer Tube
    • Sealed Front and Rear Hubs
    • 3 Piece Cranks
    • Mid BB
    • Integrated Headset
    • Eastern Riblet Grips
    • Eastern Facet Pedals
    • Eastern Sprocket
    • Double Wall Rear Rim
    • Eastern Curb Monkey 20 x 2.40


*NOTICE: Once a bike ships the order can not be refunded. Specs & Pricing Subject to Change

FRAME

Thunderbird 20", Full Chromoly
Top Tube Size: 21.0"
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38"
Clamp: Integrated with Frame

BARS

Hi-Ten 8.75"
Upsweep/Backsweep 12°/1°

FORK

Thunderbird 20", Chromoly Steerer with Hi-Tensile Steel Legs
Fork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Square Tapered Arm

BOTTOM BRACKET Sealed Bearing Mid

CHAINWHEEL Eastern Phorcys, Alloy, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Facet Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Medium Width Pivotal Seat

POST Pivotal 200mm

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB 5 Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM  Alloy, Single Wall, Drilled for 36 Spokes

REAR RIM  Alloy, Double Wall, Drilled for 36 Spokes

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE Eastern Curb Monkey 20 x 2.40

REAR TIRE  Eastern Curb Monkey 20 x 2.40

PEG none
