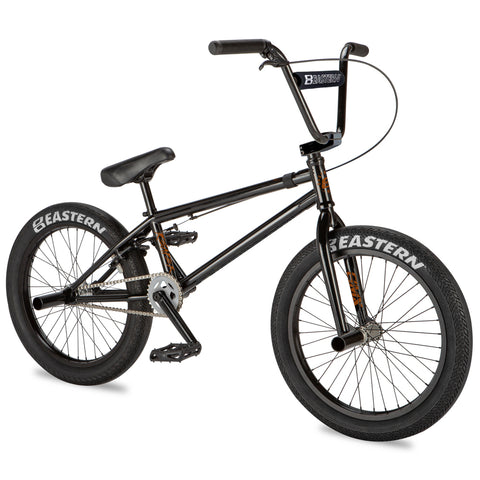

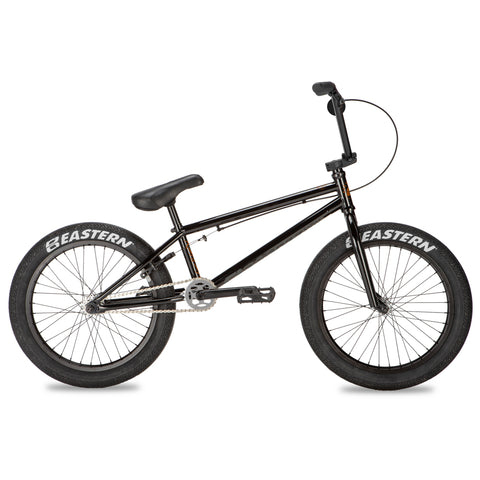

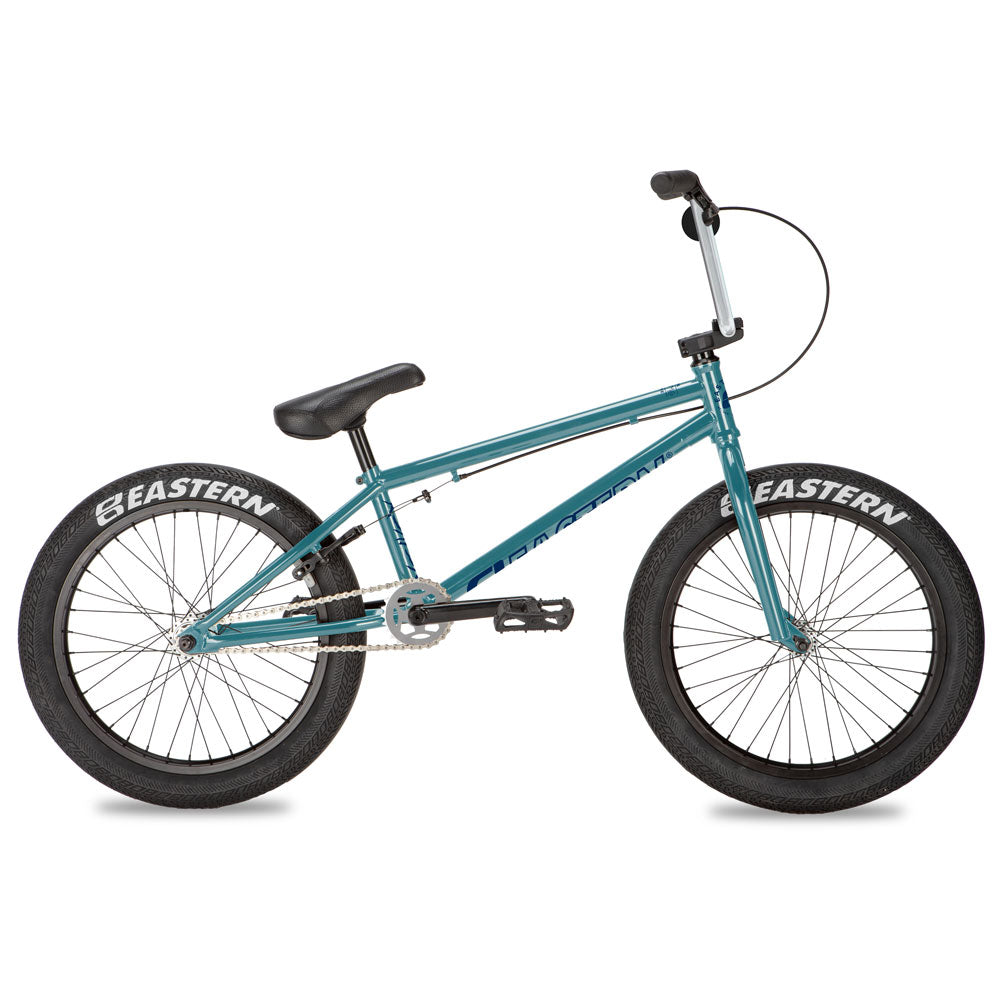

The pro level Eastern Reaper features a full chromoly frame with Helix downtube for higher strength, plus chromoly fork and bars for lightweight performance. The Reaper is dialed in with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims, Eastern Slim Pegs and Facet pedals.
25.6 Lbs
- Chromoly Frame with Helix DT
- Chromoly Fork w/ 1pc Steerer Tube
- Chromoly Bars
- Sealed Hubs
- 3 Piece 48 Spline Cranks
- Mid BB
- Integrated Headset
- Eastern Grips
- Alloy Eastern Phorcys Sprocket
- Pivotal Seat
- Double Wall Front and Rear Rims
- 2.4" Eastern Squealer 100psi Tires
- Eastern Facet Pedals
- 2 Eastern Slim Pegs
100% CHROMOLY FRAME, FORK & BARS
Upgraded full chromoly frame, fork and bars for lightweight performance and durability
CNC'D Top Load Stem
CNC Machined 6061 Missile Grade Aluminum Top Load Stem.
EASTERN FAT PIVOTAL SEAT
More adjustability and padding with an attractive silhouette for professional look.
SEALED HUBS
Hi-end sealed bearing front and rear hubs for a smoother ride and less maintenance.

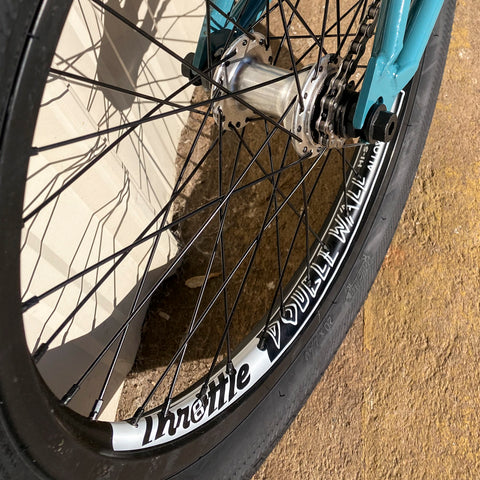

7000-SERIES ALUMINUM 2X WALL RIMS
Pro level fusion welded seam rims beefed up with 2 layers of light and strong 7000-series aluminum alloy.
Reaper Specs
FRAME
Reaper 20", Full Chromoly with Helix Downtube, Removable Brake Mounts, Mid BB, Internal Headset
Top Tube Size: 20.85″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
BARS
Full Chromoly 9.0"
Upsweep/Backsweep 12⁰/1⁰
FORK
Reaper 20", Full Chromoly with 1pc CNC'd Steerer Tube
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM CNC Machined 6061 Missile Grade Aluminum Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Alloy, 28T
CHAIN KMC Z510 1/2 x 1/8

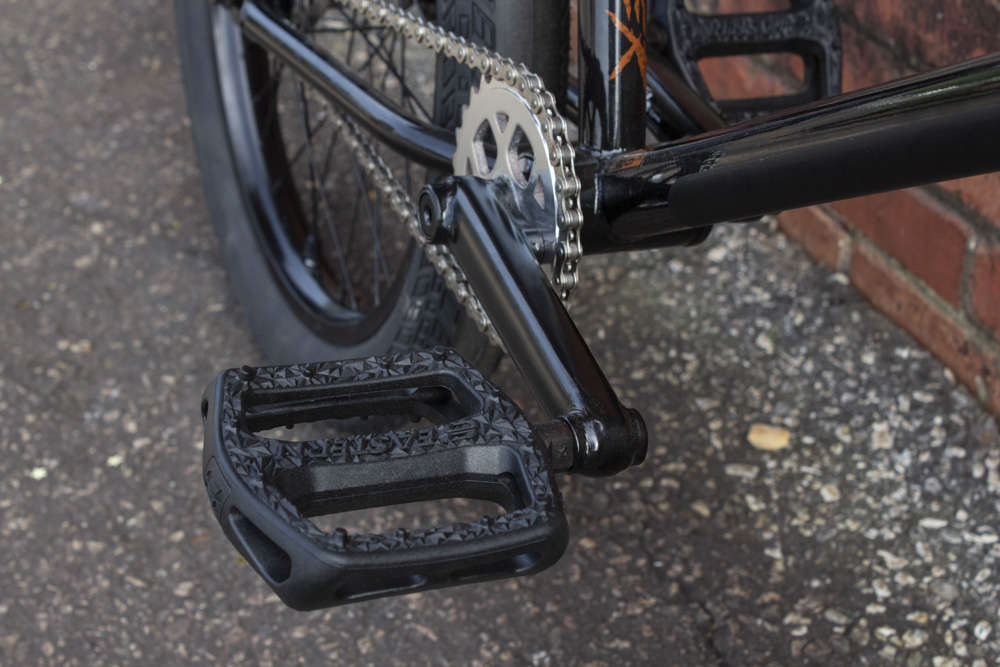

PEDAL Eastern Facet pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
Reaper 20", Full Chromoly with Helix Downtube, Removable Brake Mounts, Mid BB, Internal Headset
Top Tube Size: 20.85″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
BARS
Full Chromoly 9.0"
Upsweep/Backsweep 12⁰/1⁰
FORK
Reaper 20", Full Chromoly with 1pc CNC'd Steerer Tube
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM CNC Machined 6061 Missile Grade Aluminum Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Alloy, 28T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Facet pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Pivotal Seat
POST Pivotal, Alloy, 200mm
FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for
36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Sealed Driver with Hub
FRONT RIM 7000-Series Aluminum, Fusion Welded, Double Wall, Drilled for 36 Spokes, For 20" Tires
REAR RIM 7000-Series Aluminum, Fusion Welded, Double Wall, Drilled for 36 Spokes, For 20" Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern Squealer 100psi 20 x 2.40
REAR TIRE Eastern Squealer 100psi 20 x 2.40
PEG Eastern Slim Pegs. Chromoly with Internal Machining to Save Weight. (2pcs)
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Pivotal Seat
POST Pivotal, Alloy, 200mm
FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for
36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Sealed Driver with Hub
FRONT RIM 7000-Series Aluminum, Fusion Welded, Double Wall, Drilled for 36 Spokes, For 20" Tires
REAR RIM 7000-Series Aluminum, Fusion Welded, Double Wall, Drilled for 36 Spokes, For 20" Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern Squealer 100psi 20 x 2.40
REAR TIRE Eastern Squealer 100psi 20 x 2.40
PEG Eastern Slim Pegs. Chromoly with Internal Machining to Save Weight. (2pcs)
*Bikes are designed for riders 13 years old and up.
*This pricing valid in USA only. Specs & pricing Subject to Change
*NOTICE: Once a bike ships the order can not be refunded
