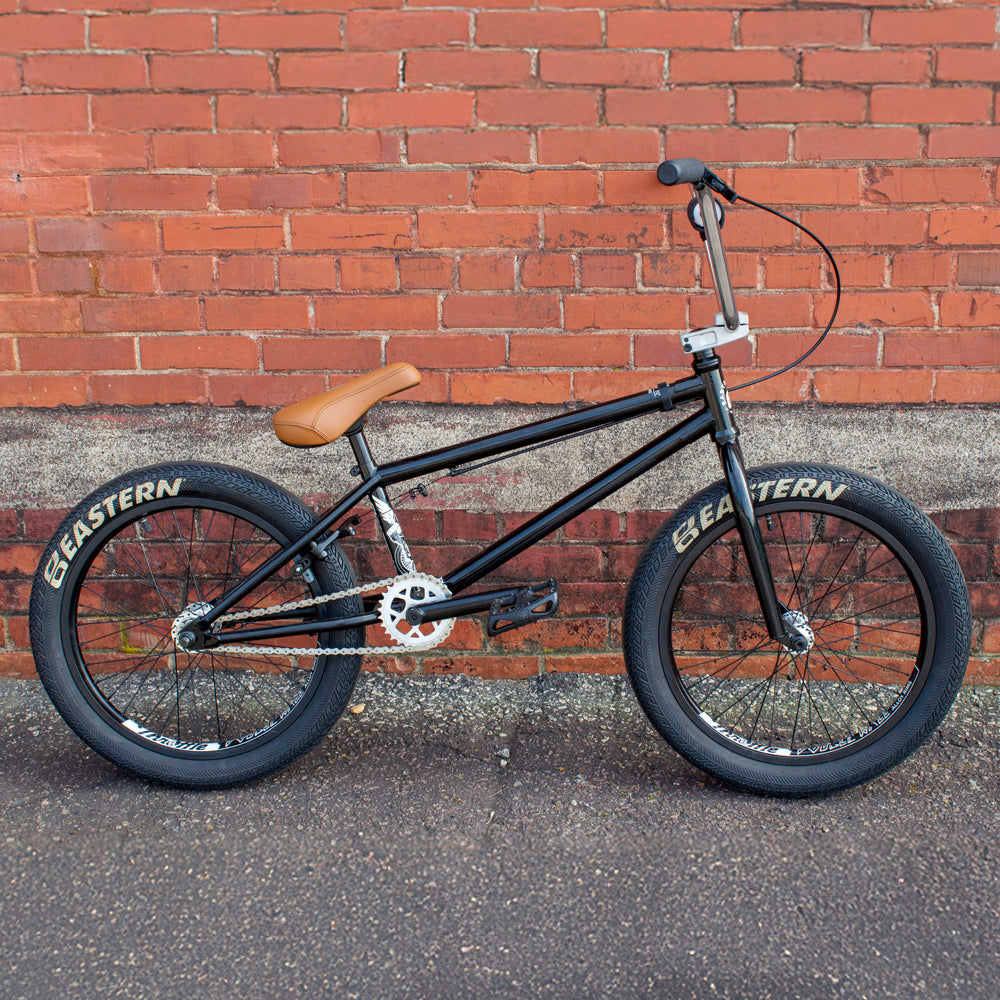

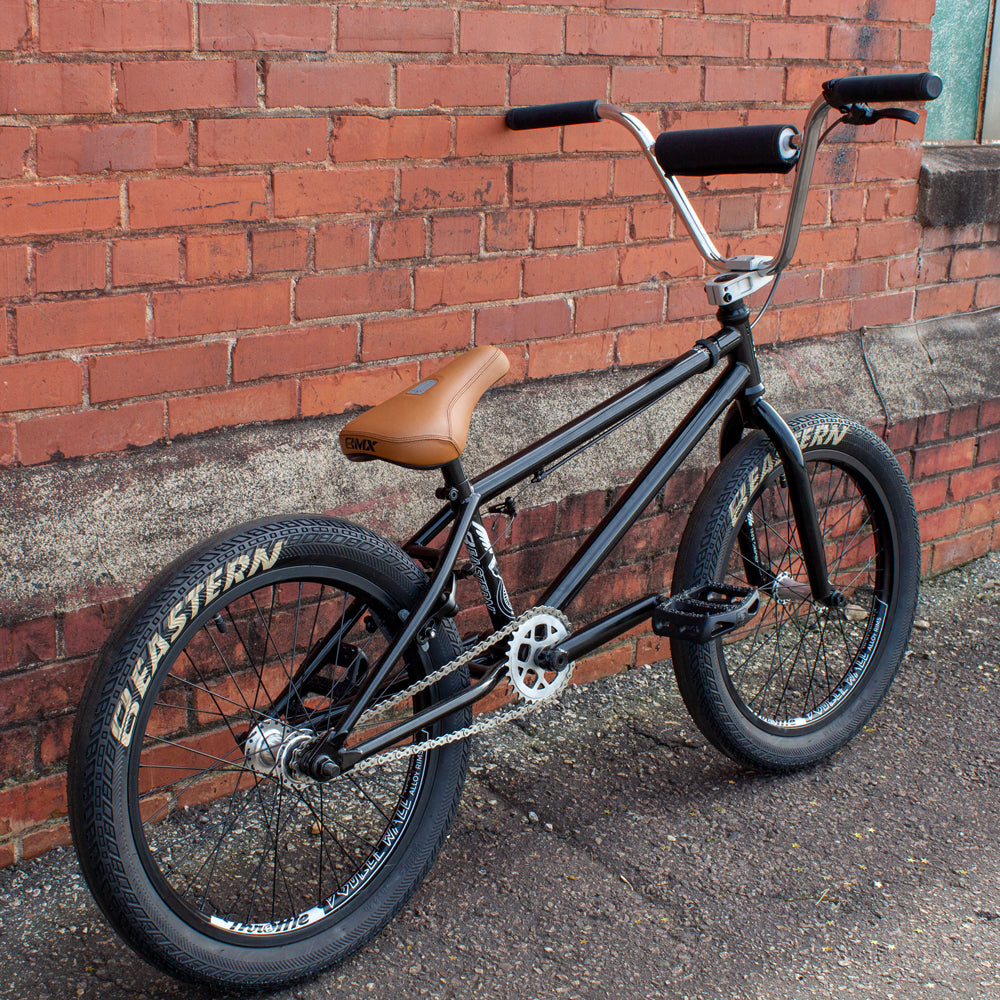

The expert level Eastern Shovelhead BMX bike has been an Eastern staple for over a decade. A full chromoly frame, fork and bars provide lightweight performance. The Shovelhead is finished off with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims and our new Facet pedals. (2 Steel Pegs Included)
FEATURES Chromoly FrameChromoly ForkChromoly Bars Sealed Hubs3 Piece 48 Spline CranksMid BBCNC'D 6061 Missile Grade Alloy StemIntegrated HeadsetEastern GripsAlloy Eastern Phorcys SprocketPivotal SeatDouble Wall Front and Rear Rims2.4" Eastern Squealer 100psi TiresEastern Facet Pedals2 Cold Steel Pegs 25.5 Lbs | 21.0" TT 74.5º HT | 71.2º ST | 13.38" CS 100% CHROMOLY FRAME, FORK & BARS Upgraded full chromoly frame, fork & bars for lightweight performance and durability 48 SPLINE 3PC ATOM CRANKS 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length SHOVELHEAD SPECS FRAMEFull Chromoly Shovelhead 20", Removable Brake MountsTop Tube Size: 21.0″BB: MidHeadtube: IntegratedChainstay Length: 13.38″Clamp: Integrated with FrameBARSFull Chromoly 9.0"Upsweep/Backsweep 12⁰/1⁰FORKFull Chromoly, Tapered Legs, 3/8" DropoutsFork Rake: 28mmHEADSET Integrated 45°X45° Sealed Cartridge BearingSTEM CNC Machined 6061 Missile Grade Aluminum Top Load StemGRIP Eastern Riblet GripsCRANK 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm LengthBOTTOM BRACKET Sealed Bearing MidCHAINWHEEL Eastern Phorcys, Alloy, 28TCHAIN KMC Z510 1/2 x 1/8PEDAL Eastern Facet Pedal with 9/16" Chromoly AxleFRONT BRAKE N/AFRONT LEVER N/A REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake PadsREAR LEVER Forged Alloy LeverBRAKE CABLE [S] LINEARSADDLE Medium Width Pivotal SeatPOST Pivotal, Forged Alloy, 200mmFRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36Spokes, Female Axle System with 3/8" Allen Key BoltsREAR HUB Sealed Bearings, Forged Alloy Shell Drilled for36 Spokes, 14mm Chromoly AxleFREEWHEEL 9 Tooth Driver with HubFRONT RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ TiresREAR RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ TiresSPOKES 14 Gauge with Brass NipplesFRONT TIRE Eastern Squealer 100psi 20 x 2.40REAR TIRE Eastern Squealer 100psi 20 x 2.40PEG Cold Steel Pegs (2pcs)*Bikes are designed for riders 13 years old and up.*This pricing valid in USA only. Specs & pricing Subject to Change*NOTICE: Once a bike ships the order can not be refunded
<table style="border-collapse: collapse; width: 100%;" border="0">
<tbody>
<tr>
<td style="width: 50%;">
<div>
<h3>SHOVELHEAD 20"</h3>
</div>
<div>
<div><!--block--><strong>FRAME<br /></strong>Full Chromoly Shovelhead 20", Removable Brake Mounts<br />Top Tube Size: 21.0″<br />BB: Mid<br />Headtube: Integrated<br />Chainstay Length: 13.38″<br />Clamp: Integrated with Frame<br /><br /><strong>BARS<br /></strong>Full Chromoly 9.0"<br />Upsweep/Backsweep 12⁰/1⁰<br /><br /><strong>FORK<br /></strong>Full Chromoly, Tapered Legs, 3/8" Dropouts<br />Fork Rake: 28mm<br /><br /><strong>HEADSET</strong> Integrated 45°X45° Sealed Cartridge Bearing</div>
<div><!--block--><br /><strong>STEM </strong>CNC Machined 6061 Missile Grade Aluminum Top Load Stem<br /><br /></div>
<div><!--block--><strong>GRIP</strong> Eastern Riblet Grips<br /><br /></div>
<div><!--block--><strong>CRANK</strong> 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length<br /><br /></div>
<div><!--block--><strong>BOTTOM BRACKET</strong> Sealed Bearing Mid<br /><br /></div>
<div><!--block--><strong>CHAINWHEEL</strong> Eastern Phorcys, Alloy, 28T<br /><br /></div>
<div><!--block--><strong>CHAIN</strong> KMC Z510 1/2 x 1/8<br /><br /></div>
<div><!--block--><strong>PEDAL </strong>Eastern Facet Pedal with 9/16" Chromoly Axle<br /><br /></div>
<div><!--block--><strong>FRONT BRAKE</strong> N/A<br /><br /></div>
<div><!--block--><strong>FRONT LEVER</strong> N/A</div>
</div>
</td>
<td style="width: 50%;">
<div><!--block--><strong>REAR BRAKE</strong> U-Brake, Forged Alloy, Wide Body, Clear Brake Pads<br /><br /></div>
<div><!--block--><strong>REAR LEVER</strong> Forged Alloy Lever<br /><br /></div>
<div><!--block--><strong>BRAKE CABLE</strong> [S] LINEAR<br /><br /></div>
<div><!--block--><strong>SADDLE </strong>Medium Width Pivotal Seat<br /><br /></div>
<div><!--block--><strong>POST</strong> Pivotal, Forged Alloy, 200mm<br /><br /></div>
<div><!--block--><strong>FRONT HUB</strong> Sealed Bearing, Forged Alloy Shell, Drilled for 36<br />Spokes, Female Axle System with 3/8" Allen Key Bolts<br /><br /></div>
<div><!--block--><strong>REAR HUB</strong> Sealed Bearings, Forged Alloy Shell Drilled for<br />36 Spokes, 14mm Chromoly Axle<br /><br /></div>
<div><!--block--><strong>FREEWHEEL</strong> 9 Tooth Driver with Hub<br /><br /></div>
<div><!--block--><strong>FRONT RIM </strong>Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires<br /><br /></div>
<div><!--block--><strong>REAR RIM </strong>Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires<br /><br /></div>
<div><!--block--><strong>SPOKES</strong> 14 Gauge with Brass Nipples<br /><br /></div>
<div><!--block--><strong>FRONT TIRE </strong>Eastern Squealer 100psi 20 x 2.40<br /><br /></div>
<div><!--block--><strong>REAR TIRE </strong>Eastern Squealer 100psi 20 x 2.40<br /><br /></div>
<div><!--block--><strong>PEG</strong> Cold Steel Pegs (2pcs)<br /><br /></div>
<div><!--block-->*<em>Bikes are designed for riders 13 years old and up.<br /><br />*This pricing valid in USA only. Specs & pricing Subject to Change<br /><br />*NOTICE: Once a bike ships the order can not be refunded</em></div>
</td>
</tr>
</tbody>
</table>
FIND THE RIGHT SIZE BIKE
Use the height chart to determine what top tube length is the best fit for your size. This chart is only meant to guide you towards a bike frame that properly fits your proportions. Please take into consideration your experience, riding style, and preference. These factors are just as important as your height. Bikes are designed for riders 13 years old and up.
