Shovelhead

Regular price $399.99 $699.99
/
4741

Shovelhead

Orange - $399.99
  • Orange - $399.99
  • Black - $399.99

DETAILS

  chromo-frame-logo-1   chromo-frame-fork-bars-logo-1  chromo-frame-bars-logo-1   3pc-cranks-logo-1    chromo-frame-fork-bars-logo-1   logo-int-headset-1   logo-double-rim-1   mid-bb-logo-1  pivotal-logo-1   pivotal-logo-1 mid-bb-logo-1  Eastern Riblet Grips
The expert level Eastern Shovelhead BMX bike has been an Eastern staple for over a decade. A full chromoly frame, fork and bars provide lightweight performance. The Shovelhead is finished off with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims and our new Facet pedals. (2 Steel Pegs Included)

SPECS

<table style="border-collapse: collapse; width: 100%;" border="0">
<tbody>
<tr>
<td style="width: 50%;">
<div>
<h3>SHOVELHEAD 20"</h3>
</div>
<div>
<div><!--block--><strong>FRAME<br /></strong>Full Chromoly Shovelhead 20", Removable Brake Mounts<br />Top Tube Size: 21.0&Prime;<br />BB: Mid<br />Headtube: Integrated<br />Chainstay Length: 13.38&Prime;<br />Clamp: Integrated with Frame<br /><br /><strong>BARS<br /></strong>Full Chromoly 9.0"<br />Upsweep/Backsweep 12⁰/1⁰<br /><br /><strong>FORK<br /></strong>Full Chromoly, Tapered Legs, 3/8" Dropouts<br />Fork Rake: 28mm<br /><br /><strong>HEADSET</strong>&nbsp;Integrated 45&deg;X45&deg; Sealed Cartridge Bearing</div>
<div><!--block--><br /><strong>STEM&nbsp;</strong>CNC Machined 6061 Missile Grade Aluminum Top Load Stem<br /><br /></div>
<div><!--block--><strong>GRIP</strong>&nbsp;Eastern Riblet Grips<br /><br /></div>
<div><!--block--><strong>CRANK</strong>&nbsp;3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length<br /><br /></div>
<div><!--block--><strong>BOTTOM BRACKET</strong>&nbsp;Sealed Bearing Mid<br /><br /></div>
<div><!--block--><strong>CHAINWHEEL</strong>&nbsp;Eastern Phorcys, Alloy, 28T<br /><br /></div>
<div><!--block--><strong>CHAIN</strong>&nbsp;KMC Z510 1/2 x 1/8<br /><br /></div>
<div><!--block--><strong>PEDAL&nbsp;</strong>Eastern Facet Pedal with 9/16" Chromoly Axle<br /><br /></div>
<div><!--block--><strong>FRONT BRAKE</strong>&nbsp;N/A<br /><br /></div>
<div><!--block--><strong>FRONT LEVER</strong>&nbsp;N/A</div>
</div>
</td>
<td style="width: 50%;">
<div><!--block--><strong>REAR BRAKE</strong>&nbsp;U-Brake, Forged Alloy, Wide Body, Grey Brake Pads<br /><br /></div>
<div><!--block--><strong>REAR LEVER</strong>&nbsp;Forged Alloy Lever<br /><br /></div>
<div><!--block--><strong>BRAKE CABLE</strong>&nbsp;[S] LINEAR<br /><br /></div>
<div><!--block--><strong>SADDLE&nbsp;</strong>Medium Width Pivotal Seat<br /><br /></div>
<div><!--block--><strong>POST</strong>&nbsp;Pivotal, Forged Alloy, 200mm<br /><br /></div>
<div><!--block--><strong>FRONT HUB</strong>&nbsp;Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, Female Axle System with 3/8" Allen Key Bolts
<br /><br /></div>
<div><!--block--><strong>REAR HUB</strong>&nbsp;Sealed Bearings, Forged Alloy Shell Drilled for<br />36 Spokes, 14mm Chromoly Axle<br /><br /></div>
<div><!--block--><strong>FREEWHEEL</strong>&nbsp;9 Tooth Driver with Hub<br /><br /></div>
<div><!--block--><strong>FRONT RIM&nbsp;</strong>Alloy, Double Wall, Drilled for 36 Spokes. For 20&Prime; Tires<br /><br /></div>
<div><!--block--><strong>REAR RIM&nbsp;</strong>Alloy, Double Wall, Drilled for 36 Spokes. For 20&Prime; Tires<br /><br /></div>
<div><!--block--><strong>SPOKES</strong>&nbsp;14 Gauge with Brass Nipples<br /><br /></div>
<div><!--block--><strong>FRONT TIRE&nbsp;</strong>Eastern Squealer 100psi 20 x 2.40<br /><br /></div>
<div><!--block--><strong>REAR TIRE&nbsp;</strong>Eastern Squealer 100psi 20 x 2.40<br /><br /></div>
<div><!--block--><strong>PEG</strong>&nbsp;Cold Steel Pegs (2pcs)<br /><br /></div>
<div><!--block-->*<em>Bikes are designed for riders 13 years old and up.<br /><br />*This pricing valid in USA only. Specs &amp; pricing Subject to Change<br /><br />*NOTICE: Once a bike ships the order can not be refunded</em></div>
</td>
</tr>
</tbody>
</table>

SIZE & FIT

<div style="text-align: center;" data-mce-fragment="1">
<h3>FIND THE RIGHT SIZE BIKE</h3>
</div>
<div style="text-align: center;"><img src="https://cdn.shopify.com/s/files/1/0036/7126/1257/files/2016-Bike-Sizing-Chart.png?v=1539632876" alt="" data-mce-fragment="1" data-mce-src="https://cdn.shopify.com/s/files/1/0036/7126/1257/files/2016-Bike-Sizing-Chart.png?v=1539632876"><span data-mce-fragment="1"></span></div>
<div style="text-align: center;"><span data-mce-fragment="1">Use the height chart to determine what top tube length is the best fit for your size. This chart is only meant to guide you towards a bike frame that properly fits your proportions. Please take into consideration your experience, riding style, and preference. These factors are just as important as your height. Bikes are designed for riders 13 years old and up.</span></div>

SHIPPING & RETURNS

Returns Policy

Eastern Bikes wants you to be completely satisfied with your purchase! When you receive your order, please inspect all merchandise for any defects or poor workmanship. If you are not satisfied with your purchase, we ask that you contact us within 10 days by email, customerservice@easternbikes.com, or by phone (984) 204-2922 letting us know the reason for your return and whether you would like a refund or an exchange. Once we receive this information we will issue you a Return Authorization Number (RAN). Please note that no returns or exchanges will be accepted without an RAN.


Shipping

All orders are processed within 1 to 2 business days (excluding weekends and holidays) after receiving your order confirmation email. You will receive another notification when your order has shipped. Domestic Shipping Rates and Estimates Shipping charges for your order will be calculated and displayed at checkout. Free Shipping for part orders $40 and up in the continental US only.

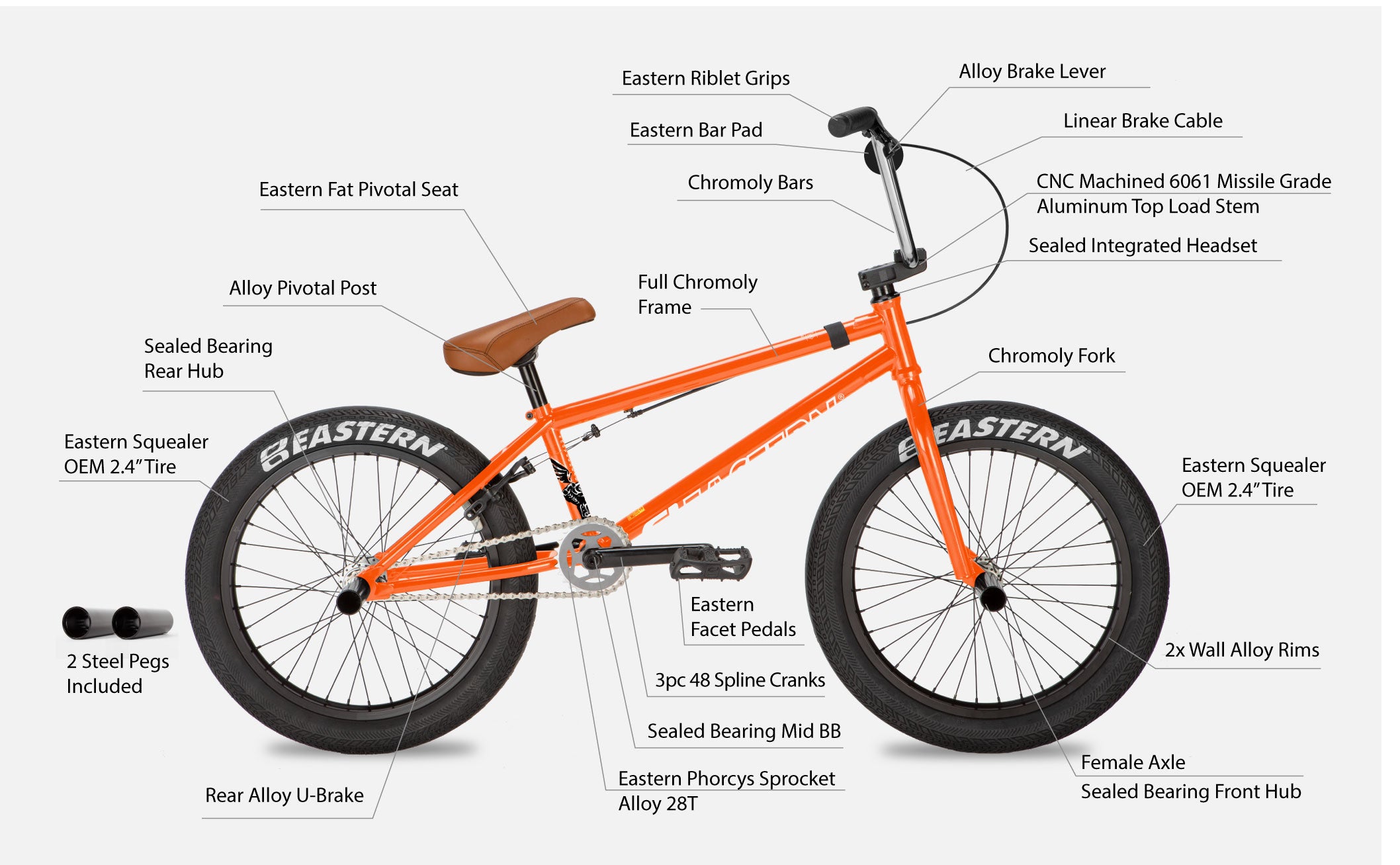

FEATURES

  • Chromoly Frame
  • Chromoly Fork
  • Chromoly Bars
  • Sealed Hubs
  • 3 Piece 48 Spline Cranks
  • Mid BB
  • CNC'D 6061 Missile Grade Alloy Stem
  • Integrated Headset
  • Eastern Grips
  • Alloy Eastern Phorcys Sprocket
  • Pivotal Seat
  • Double Wall Front and Rear Rims
  • 2.4" Eastern Squealer 100psi Tires
  • Eastern Facet Pedals
  • 2 Cold Steel Pegs
25.5 Lbs | 21.0" TT
74.5º HT | 71.2º ST | 13.38" CS

100% CHROMOLY FRAME, FORK & BARS
Upgraded full chromoly frame, fork & bars for lightweight performance and durability

48 SPLINE 3PC ATOM CRANKS
3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
