Orbit

  • Sale
  • $519.99
  • Regular price $539.99


chromo-dt-logo-1    logo-int-headset-1  logo-double-rim-1  mid-bb-logo-1  3pc-cranks-logo-1 Eastern Riblet Grips

FREE $10 Gift Card w/ Bike Purchase Valid only at easternbikes.com. Your email must be entered at checkout and you must be an Eastern Bikes newsletter subscriber. Your gift card code will be emailed after purchase is made. *Not valid with other offers.

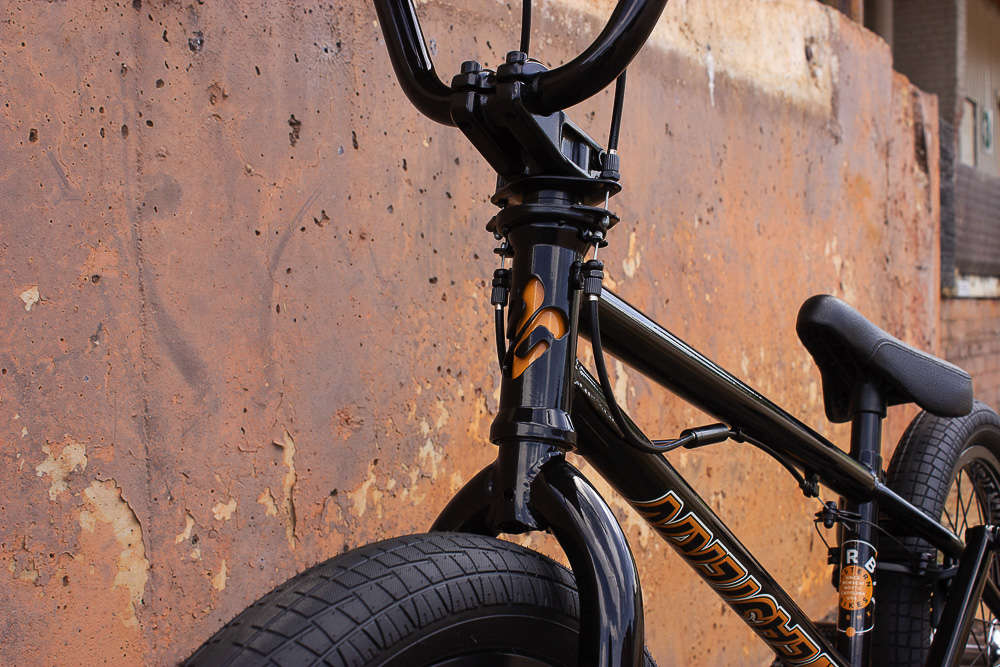

EASTERN ORBIT 20" BMX BIKE

The Orbit is just as solid as last years. This beginner's BMX bike is built with gyro and a chromoly down tube, sealed front and rear hubs for a long-lasting smooth ride. Rotor, sealed bearing integrated headset, a 3-piece chromoly cranks, 4 pegs, Eastern grips, pedals, sprocket and tires.
26.0 Lbs
  • Chromoly Down Tube & Chromoly Steerer Tube
  • Rotor included
  • Sealed Front and Rear Hubs
  • 3 Piece Tubular Chromoly Atom Cranks
  • Mid BB
  • Integrated Headset
  • Eastern Riblet Grips
  • Eastern Atom Pedals
  • Eastern Sprocket
  • Double Wall Rims
  • 2.4" Eastern OEM Throttle Tires
SEALED HUBS
Hi-end sealed bearing front and rear hubs for a smoother ride and less maintenance.

EASTERN ATOM 3pc CRANKS
Heat Treated chromoly arms with heat treated 19mm 8-spline chromoly spindle

PADDED SEAT COMBO

Comfortable and lightweight with thick padding and Eastern EBMX logo embossed on the back.

Orbit Specs

FRAME
Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
Top Tube Size: 20.25″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame

BARS
Hi-Ten 8.25"Upsweep/Backsweep 12⁰/1⁰

FORK
Orbit 20”, Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mmFork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm

BOTTOM BRACKET Sealed Bearing Mid

CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Medium Width Seat/ Post Combo

POST Comes with seat

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes

REAR RIM Alloy, Double Wall, Drilled for 36 Spokes

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE Eastern OEM 20 x 2.40

REAR TIRE Eastern OEM 20 x 2.40

PEG 2 Pair

ROTOR Yes

*Bikes are designed for riders 13 years old and up.

*This pricing valid in USA only. Specs & pricing Subject to Change

*NOTICE: Once a bike ships the order can not be refunded
