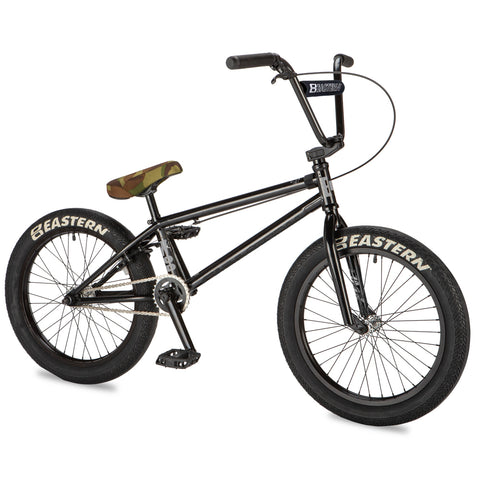

The intermediate level Eastern Wolfdog is a great bike for riders wanting to up their ride. Built with a full chromoly frame and fork, a sealed bearing integrated headset, sealed front & rear hubs, a 3-piece chromoly cranks, chromoly sprocket, double wall rims plus Eastern Facet pedals and Squealer tires.
25.6 Lbs
- Full Chromoly Frame & Fork
- Sealed Front and Rear Hubs
- 3 Piece Tubular Chromoly Cranks
- Mid BB
- Integrated Headset
- Double Wall Front and Rear Rims
- Eastern Riblet Grips
- Chromoly Eastern Phorcys Sprocket
- Pivotal Seat
- 2.4" Eastern Squealer OEM Tires
- Eastern Facet Pedals
100% CHROMOLY FRAME & FORK
Upgraded full chromoly frame and fork for lightweight performance and durability
SEALED HUBS
Hi-end sealed bearing front and rear hubs for a smoother ride and less maintenance.
DOUBLE-WALL ALLOY RIMS
Eastern Throttle rims beefed up with 2 layers of light and strong alloy.
EASTERN FAT PIVOTAL SEAT
More adjustability and padding with an attractive silhouette for professional look.
Wolfdog Specs
FRAME
Wolfdog 20"
Full Chromoly Frame
Top Tube Size: 20.75″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
Full Chromoly Frame
Top Tube Size: 20.75″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
BARS
Hi-Ten 8.85"
Upsweep/Backsweep 12⁰/1⁰
Upsweep/Backsweep 12⁰/1⁰
FORK
Wolfdog 20”, - Full Chromoly
Fork Rake: 28mm
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Chromoly, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Facet Pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Pivotal Seat
POST Pivotal, Forged Alloy, 200mm

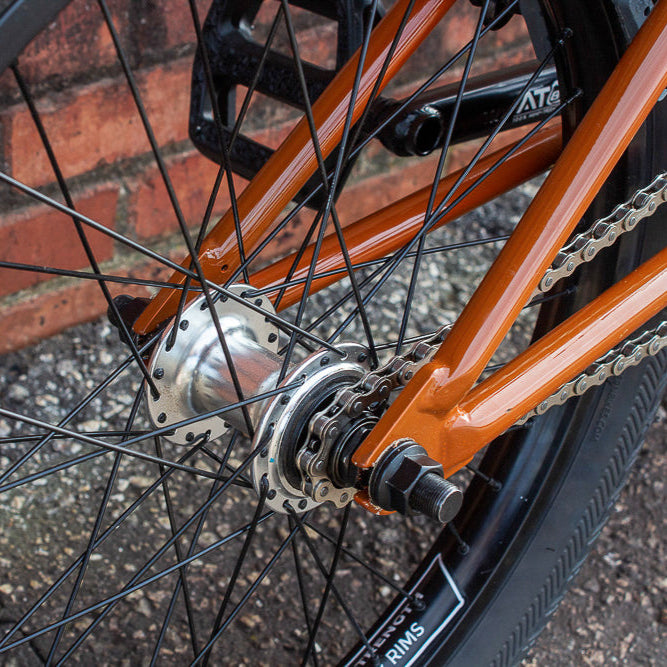

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8″ Chromoly Axle
REAR HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern Squealer OEM 20 x 2.40
REAR TIRE Eastern Squealer OEM 20 x 2.40
PEG none
*Bikes are designed for riders 13 years old and up.
*This pricing valid in USA only. Specs & pricing Subject to Change
*NOTICE: Once a bike ships the order can not be refunded
*This pricing valid in USA only. Specs & pricing Subject to Change
*NOTICE: Once a bike ships the order can not be refunded
